Flozari GH-302-FM Toggle Clamp Használati útmutató

1. Bevezetés

The Flozari GH-302-FM Toggle Clamp is a robust hand tool designed for securely holding workpieces in various applications. Its quick-release push-pull action allows for efficient clamping és unclamping, making it suitable for welding, forming, bench saw/planer fixtures, cabinetry, milling machine worktops, jigs, assemblies, and mobile bases. This manual provides essential information for the safe and effective use of your GH-302-FM toggle clamp.

2. Biztonsági információk

• Always wear appropriate personal protective equipment (PPE), such as safety glasses, when operating or installing the clamp.
• Biztosítsa a clamp is securely mounted to a stable surface before applying pressure.
• Do not exceed the specified holding capacity of 136 kg (300 lbs) to prevent damage to the clamp vagy sérülést.
• Keep hands and fingers clear of moving parts during clamping és unclampműveleteket.
• Vizsgálja meg a clamp for any signs of wear, damage, or loose components before each use. Do not use a damaged clamp.
• Használja a clamp only for its intended purpose as a workholding device.

3. Termék végeview

The GH-302-FM toggle clamp features a durable construction of cold-rolled carbon steel with zinc plating for corrosion resistance. It is designed with a low-profile form factor and includes a pressure adaptor for easy depth adjustment, ensuring maximum clearance for various workpieces.

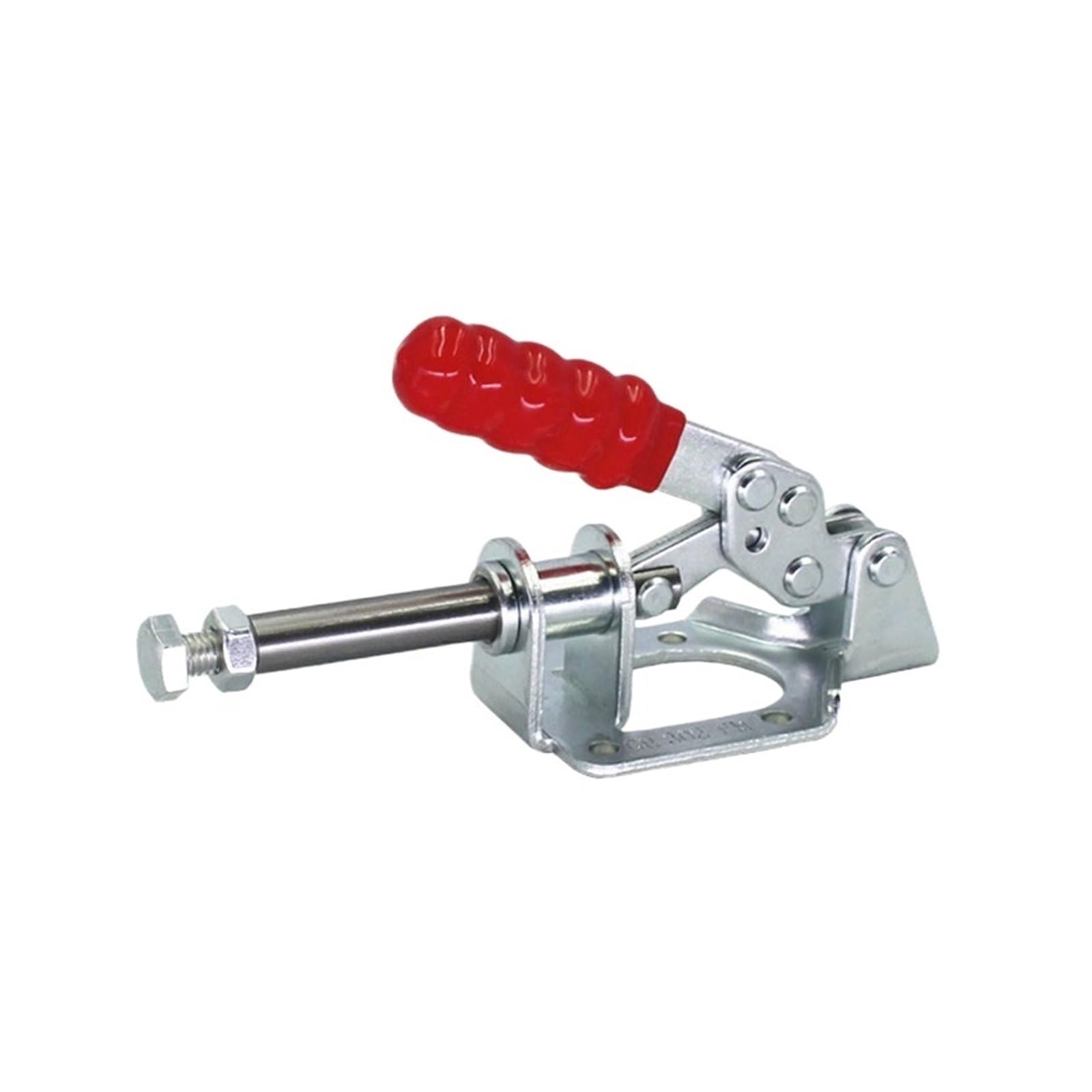

3.1. ábra: Általános view of the Flozari GH-302-FM Toggle Clamp. This image displays the clamp's overall design, including the red handle and galvanized steel components.

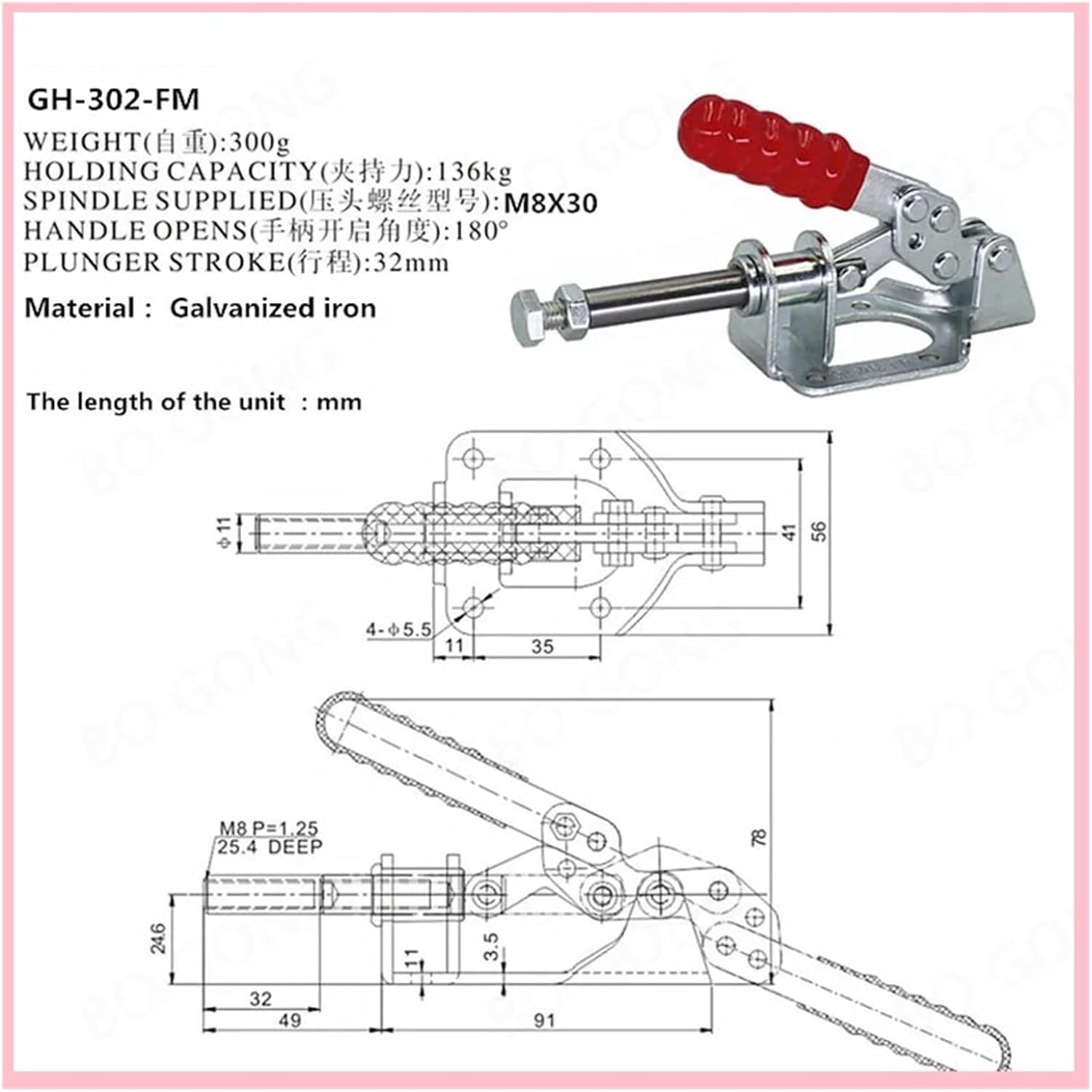

Figure 3.2: Detailed diagram showing the dimensions and key specifications of the GH-302-FM Toggle Clamp. This includes measurements in millimeters, weight, holding capacity, spindle type, handle open angle, and plunger stroke.

4. Beállítás és telepítés

The GH-302-FM toggle clamp is designed for simple installation. Follow these steps to mount the clamp biztosan:

1. Válassza ki a szerelési helyet: Choose a stable and appropriate surface (e.g., workbench, jig, fixture) where the clamp will be used. Ensure the surface can withstand the clamperőket.
2. Helyezze el a Clamp: Helyezze el a clamp base in the desired position. The base has pre-drilled holes for mounting.
3. Fúrási pontok megjelölése: Use a pencil or marker to mark the locations for drilling through the mounting holes on the clamp bázis.
4. Fúró lyukak: Drill pilot holes into the mounting surface according to the size of your chosen screws.
5. Rögzítse a Clamp: Igazítsa a clamp with the pilot holes and secure it firmly using appropriate screws and nuts (not included). Ensure all fasteners are tightened to prevent movement during operation.
6. Adjust Pressure Adaptor: A clamp features a pressure adaptor on the spindle. Adjust its position to achieve the desired clamping depth and pressure on your workpiece.

Figure 4.1: The GH-302-FM Toggle Clamp shown with a separate bolt and nut, illustrating the type of hardware typically used for mounting the clamp egy felületre.

5. Használati útmutató

To operate the Flozari GH-302-FM Toggle Clamp:

1. Munkadarab elhelyezése: Place the workpiece securely under the clamping kar.
2. Engage Clamp: Push the handle forward to extend the plunger and engage the workpiece. The over-center locking mechanism will hold the clamp helyén.
3. Állítsa be a Clamperő: If necessary, fine-tune the clamping force by adjusting the pressure adaptor on the spindle. Turn clockwise to increase pressure, counter-clockwise to decrease.
4. Release Clamp: Pull the handle back to retract the plunger and release the workpiece. The handle opens to an angle of 180 degrees for maximum clearance.

6. Karbantartás

Regular maintenance ensures the longevity and optimal performance of your toggle clamp:

• Tisztítás: Wipe down the clamp regularly with a clean, dry cloth to remove dust, debris, and metal shavings.
• Kenés: Periodically apply a small amount of light machine oil to the pivot points and moving parts to ensure smooth operation and prevent rust.
• Ellenőrzés: Regularly check for loose fasteners, bent components, or excessive wear on the handle, links, or spindle. Tighten any loose screws or nuts.
• Tárolás: Tárolja a clamp in a dry environment to prevent corrosion, especially if it will not be used for an extended period.

7. Hibaelhárítás

If you encounter issues with your GH-302-FM Toggle Clamp, vegye figyelembe a következőket:

• Clamp not holding securely:
  • Biztosítsa a clamp is properly mounted and all fasteners are tight.
  • Adjust the pressure adaptor on the spindle to increase clamperőt.
  • Verify the workpiece is positioned correctly and not exceeding the clampkapacitása.
• Difficulty engaging/disengaging:
  • Check for any obstructions preventing full movement of the handle or plunger.
  • Apply lubrication to pivot points if movement feels stiff.
  • Biztosítsa a clamp is not over-tightened or attempting to clamp an oversized workpiece.
• Visible wear or damage:
  • Azonnal hagyja abba a használatát.
  • Contact the manufacturer or seller for replacement parts or advice.

8. Műszaki adatok

9. Garancia és támogatás

For warranty information, technical support, or inquiries regarding replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
