1. Fontos biztonsági tudnivalók

WARNING: Plasma cutting involves high voltage, high temperatures, and intense light. Failure to follow safety precautions can result in serious injury or death.

• Always wear appropriate Personal Protective Equipment (PPE), including a welding helmet with proper shade, flame-resistant clothing, heavy-duty gloves, and safety glasses.
• Ensure adequate ventilation to avoid inhaling fumes and gases produced during cutting.
• Keep a fire extinguisher nearby. Sparks and molten metal can cause fires.
• Do not operate the plasma cutter in damp vagy nedves körülmények között.
• Ensure the workpiece is properly grounded.
• Tartsa távol a gyermekeket és az illetéktelen személyeket a működési területtől.
• Read and understand the entire manual before operating the machine.

2. Termék végeview

The Reboot RBC6000DL is a 60-amp kettős köttage (120V/240V) plasma cutter featuring non-touch pilot arc technology. It is designed for efficient and precise cutting of various metals, suitable for both beginners and small business projects.

• Non-Touch Pilot Arc: High-frequency arc starting eliminates the need for the torch head to touch the metal, reducing slag and extending consumable life.
• Powerful Cutting Performance: Equipped with upgraded electrodes and an AG60 cutting torch, offering enhanced cutting power and precision.
• Dual Voltage Képesség: Operates on both 120V and 240V power sources, providing versatility for different work environments.
• IGBT inverter technológia: Ensures stable and efficient cutting performance.

Image: The Reboot RBC6000DL Plasma Cutter, showcasing its compact design, cutting torch, and included accessories.

Image: The plasma cutter in operation, illustrating its high-frequency, IGBT technology, dual voltage, and strong heat dissipation features.

3. Alkatrészek és tartozékok

The RBC6000DL plasma cutter comes with the following components and accessories:

• RBC6000DL Plasma Cutter Machine
• Plasma Torch (AG60, 13.2 FT)
• Föld Clamp
• Power Adapter (for 120V/240V connection)
• Air Filter Regulator (pre-installed)
• Gas-Pressure Meter
• Levegőtömlő
• Electrodes (consumables)
• Nozzles (consumables)
• Felhasználói kézikönyv (ez a dokumentum)

Image: A visual representation of the plasma cutter and its included accessories, such as the torch, earth clamp, power adapter, and consumables.

Panel Bevezetés

Familiarize yourself with the controls and indicators on the plasma cutter's front and rear panels.

Kép: Részletes view of the plasma cutter's front and rear panels, labeling key components like the digital display, current adjust knob, torch connectors, air input, and air filter regulator.

4. Beállítási utasítások

The RBC6000DL is designed for quick setup. Follow these steps to prepare your machine for operation:

1. Kicsomagolás: Óvatosan távolítson el minden alkatrészt a csomagolásból.
2. Légkompresszor csatlakoztatása: The unit comes with a pre-installed air filter regulator. Connect your air compressor to the air input connector on the rear panel. Ensure the air pressure is within the recommended range of 30-60 PSI, with a maximum of 90 PSI. Recommended compressor specifications: 250L/min, 2.2 kW or above.
3. Csatlakoztassa a Föld Clamp: Rögzítse a földet clamp cable to the designated connector on the front panel. Securely clamp a föld clamp to the workpiece or a clean, bare metal part of the work table.
4. Connect Plasma Torch: Connect the AG60 plasma torch to the appropriate connectors on the front panel.
5. Tápfeszültség csatlakozás: Connect the power cable to either a 120V or 240V power outlet using the provided adapter if necessary. Ensure the power source matches the machine's voltage beállítás.
6. Bekapcsol: Flip the power switch to the 'ON' position. The digital display should illuminate.

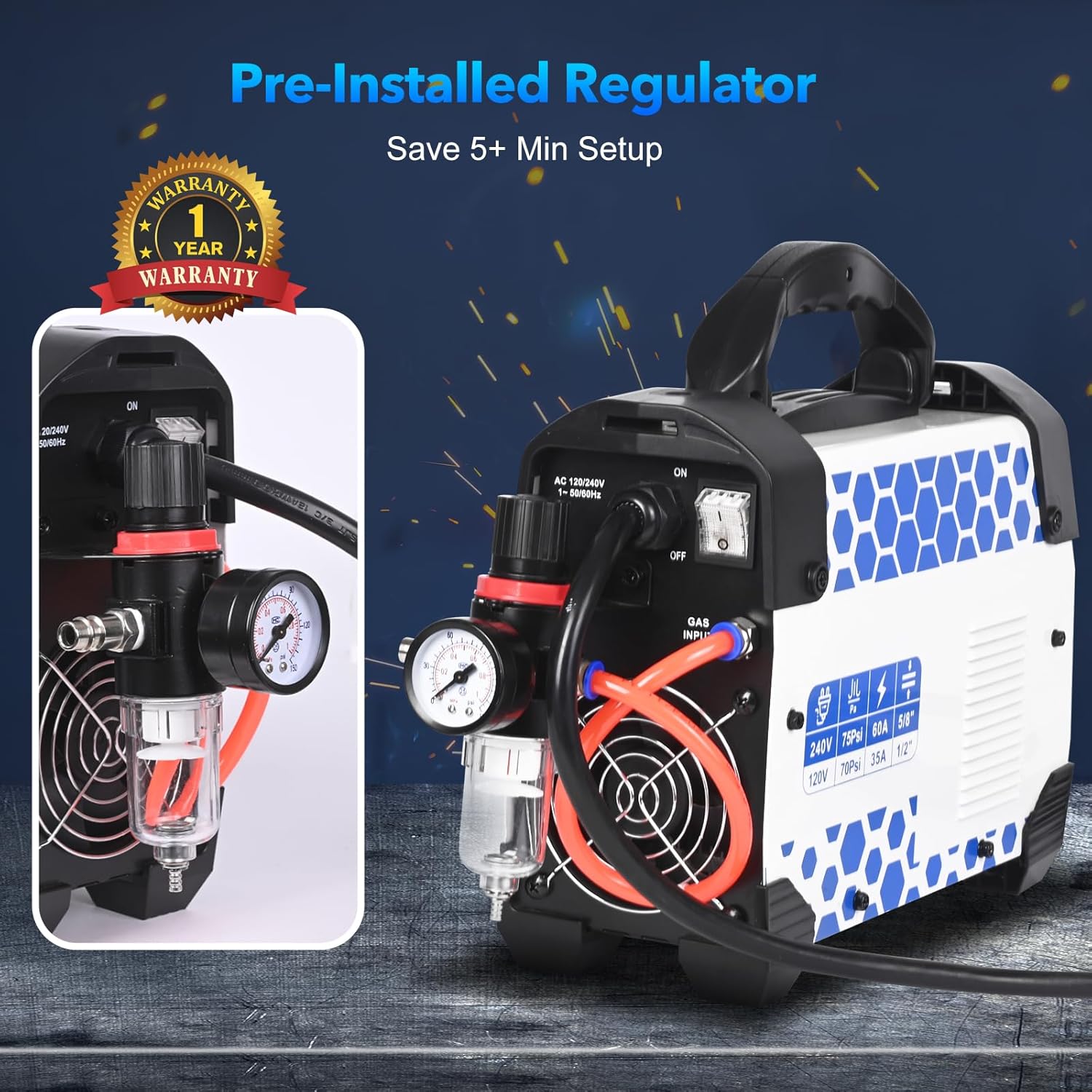

Image: The rear panel of the plasma cutter, highlighting the pre-installed air filter regulator for easy air compressor connection.

5. Használati útmutató

Once the machine is set up, follow these guidelines for effective plasma cutting:

1. Áramerősség beállítása: Use the current adjust knob on the front panel to set the desired amperage based on the material thickness and type.
2. Légnyomás beállítása: Verify the air pressure on the gauge is within the recommended operating range (30-60 PSI).
3. Ív indítása: Position the torch nozzle approximately 1/8 to 1/4 inch above the workpiece. Press the torch trigger to initiate the pilot arc. The non-touch pilot arc will start without needing to contact the metal.
4. Vágás megkezdése: Once the pilot arc is established, move the torch steadily across the material. Maintain a consistent speed and distance for a clean cut.
5. Cutting Thickness Guidelines:
   • 240V működés:
     • Clean Cut: Up to 1/2 inch (12mm)
     • Max Severance Cut: Up to 4/5 inch (20mm)
   • 120V működés:
     • Clean Cut: Up to 3/8 inch (9.5mm)
     • Max Severance Cut: Up to 1/2 inch (12mm)
6. Cutting Various Materials: The RBC6000DL is capable of cutting stainless steel, mild steel, carbon steel, copper metal, aluminum alloy, and iron metal.

Image: A visual guide demonstrating the maximum severance cut of 5/8 inch and clean cut of 1/2 inch when operating at 240V.

Kép: Plamples of the plasma cutter being used to cut different types of metal, including stainless steel, mild steel, carbon steel, aluminum alloy, copper, and iron.

6. Karbantartás

Regular maintenance ensures optimal performance and extends the lifespan of your plasma cutter.

• Fogyóeszközök: Regularly inspect and replace electrodes and nozzles as they wear out. Worn consumables can lead to poor cut quality and reduced efficiency.
• Légszűrő szabályozó: Periodically drain any accumulated moisture from the air filter regulator bowl. Clean or replace the filter element if it becomes clogged or dirty.
• Tisztítás: Keep the machine clean and free from dust and metal particles. Use compressed air to blow out internal components, ensuring the cooling fan operates effectively.
• Kábelek és csatlakozások: Inspect all cables and connections for damage or loose fittings before each use.

7. Hibaelhárítás

If you encounter issues with your plasma cutter, refer to the following common troubleshooting steps:

• Nincs áram:
  • Check power cable connections and ensure it is securely plugged into a functional outlet.
  • Ellenőrizze, hogy a főkapcsoló „BE” állásban van-e.
  • Check the circuit breaker for the power outlet.
• Nincs ív:
  • Biztosítsa a földelést clamp is securely attached to a clean, bare metal surface on the workpiece.
  • Check that the plasma torch is properly connected.
  • Inspect torch consumables (electrode, nozzle) for wear and replace if necessary.
  • Verify adequate air pressure is supplied to the machine.
• Poor Cut Quality / Excessive Slag:
  • Replace worn-out consumables (electrode, nozzle).
  • Adjust cutting speed and torch distance from the workpiece.
  • Ügyeljen a helyességre amperage setting for the material thickness.
  • Check air pressure for optimal flow.
• Overheat Indicator On:
  • Allow the machine to cool down. The fan will continue to run.
  • Ensure proper ventilation around the machine and that cooling vents are not obstructed.
  • Reduce duty cycle or cutting time.

For persistent issues, please contact Reboot customer support.

8. Műszaki adatok

Technical specifications for the Reboot RBC6000DL Plasma Cutter:

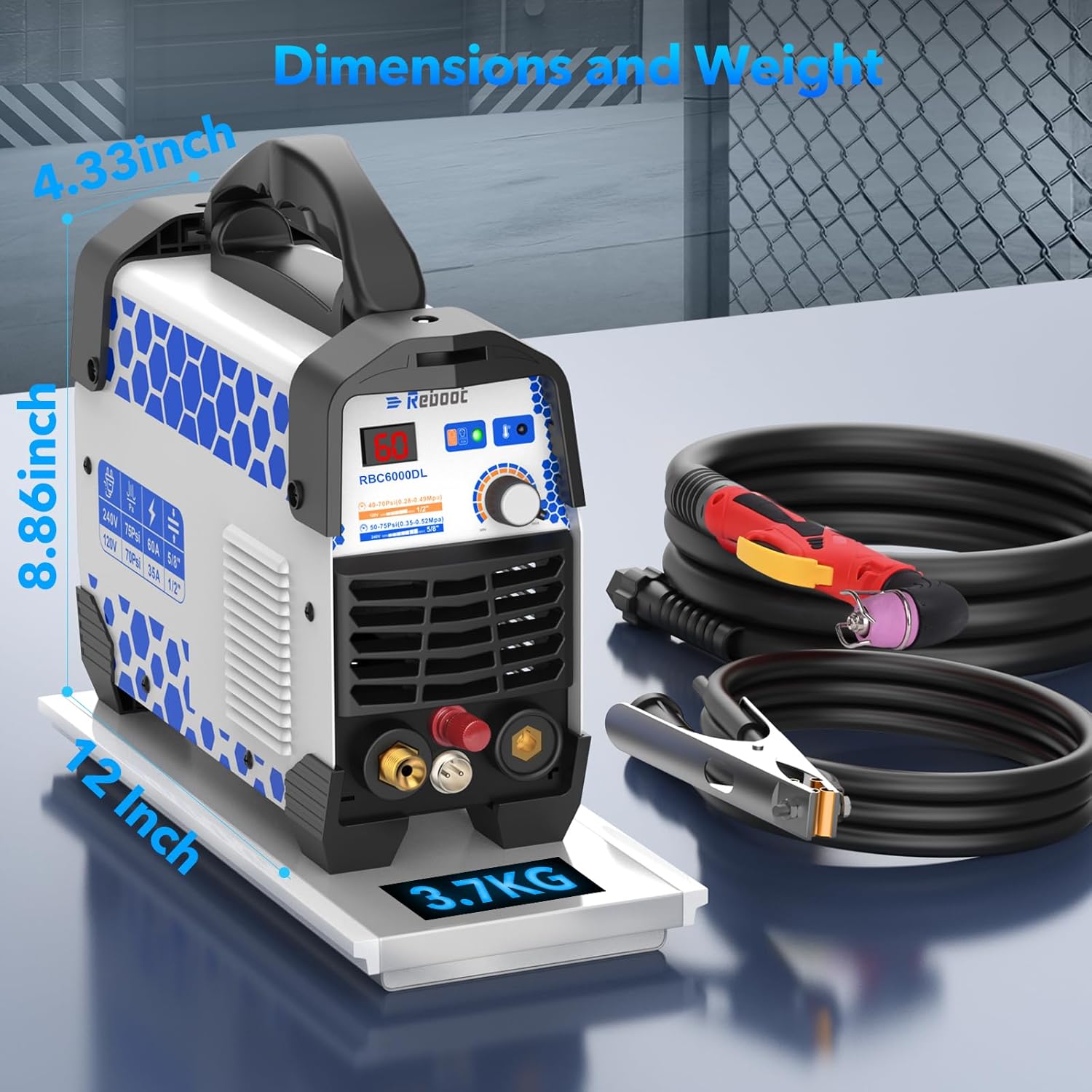

Image: Visual representation of the plasma cutter's dimensions (12 inches length, 8.86 inches height, 4.33 inches width) and weight (3.7 KG).

9. Garancia és támogatás

The Reboot RBC6000DL Plasma Cutter typically includes a 1 év garancia a vásárlás dátumától számítva, gyártási hibákra kiterjedően.

For warranty claims, technical assistance, or any questions regarding the operation or maintenance of your plasma cutter, please contact Reboot customer support directly. Refer to the contact information provided with your product packaging or visit the official Reboot webwebhely a támogatás részleteiért.
