Bevezetés

The InstallGear Keyless Entry System provides convenient and secure remote access to your vehicle's central locking system. This kit includes two 3-button remotes and four door actuators, designed for universal application in cars, autos, and trucks. It allows for seamless locking and unlocking, remote trunk release, and visual confirmation of system engagement.

Important Note: This is a highly technical product. Professional installation by an individual with extensive knowledge in car door locks and automotive electrical systems is strongly recommended to ensure proper function and safety.

Biztonsági információk

• Always disconnect the vehicle's battery before beginning any electrical installation to prevent short circuits and electrical shock.
• Ensure all wiring connections are secure and properly insulated to prevent short circuits, fire hazards, and system malfunctions.
• Route wires away from moving parts, sharp edges, and heat sources to prevent damage.
• Use appropriate fuses as specified in the wiring diagram to protect the system and vehicle's electrical components.
• If you are unsure about any part of the installation process, consult a qualified automotive technician.

A csomag tartalma

Ellenőrizze, hogy az alább felsorolt ​​összes alkatrész megvan-e a csomagban:

1. ábra: A készlet teljes tartalma

• 1x Main Unit Control Module
• 2x 3-Button Remote Controls
• 1x kábelköteg
• 4x Door Lock Actuators (including one 5-wire master actuator and three 2-wire slave actuators)
• Mounting Hardware (brackets, rods, screws)

Beállítás és telepítés

Installation of the InstallGear Keyless Entry System requires knowledge of automotive electrical systems and mechanical aptitude. Refer to the wiring diagram provided and your vehicle's specific wiring schematics for accurate connections.

Bekötési rajz végeview

2. ábra: Rendszerkapcsolási rajz

The diagram illustrates the connections between the main unit, the vehicle's battery, the door lock actuators, and optional accessories like parking lights and trunk release.

Kulcsfontosságú vezetékezési csatlakozások

• Piros vezeték: Connect to a constant +12V DC power source (e.g., vehicle battery or fuse box) with an inline fuse.
• Fekete vezeték: Csatlakoztassa a jármű alváz földeléséhez.
• Blue & Green Wires: These pairs connect to each door actuator. Ensure correct polarity for lock/unlock action. If the default action is reversed, you may need to swap these wires at the actuator.
• Master Actuator (5-wire): The master actuator (typically for the driver's door) has additional Black, White, and Brown wires. These communicate the manual lock/unlock status to the main unit, allowing all other doors to synchronize.
• Violet (Purple) Wires: These wires are for connecting to your vehicle's signaling lights (e.g., turn signals or parking lights) to provide visual confirmation of lock/unlock. Diodes are included to prevent back-feeding.
• Amber (Orange) Wire: This wire provides a low-current pulse for remote trunk release. It is recommended to connect this to a relay coil, which then controls a higher-current trunk release actuator. Direct connection to an actuator may damage the unit.
• White & Brown (Extra Wires): These are for optional manual lock/unlock switches. Connect a momentary switch between Brown and ground for unlock, and White and ground for lock.

Mechanikai szerelés

Mount the actuators securely within the door panels. The included brackets and rods may need to be bent or cut to fit your specific vehicle's door mechanism. Ensure the actuator rod moves freely and aligns properly with the factory lock rod to prevent binding and ensure smooth operation. Test the mechanical movement before finalizing electrical connections.

Kezelési útmutató

Once installed, the system is operated using the provided 3-button remote controls.

Távirányító funkciók

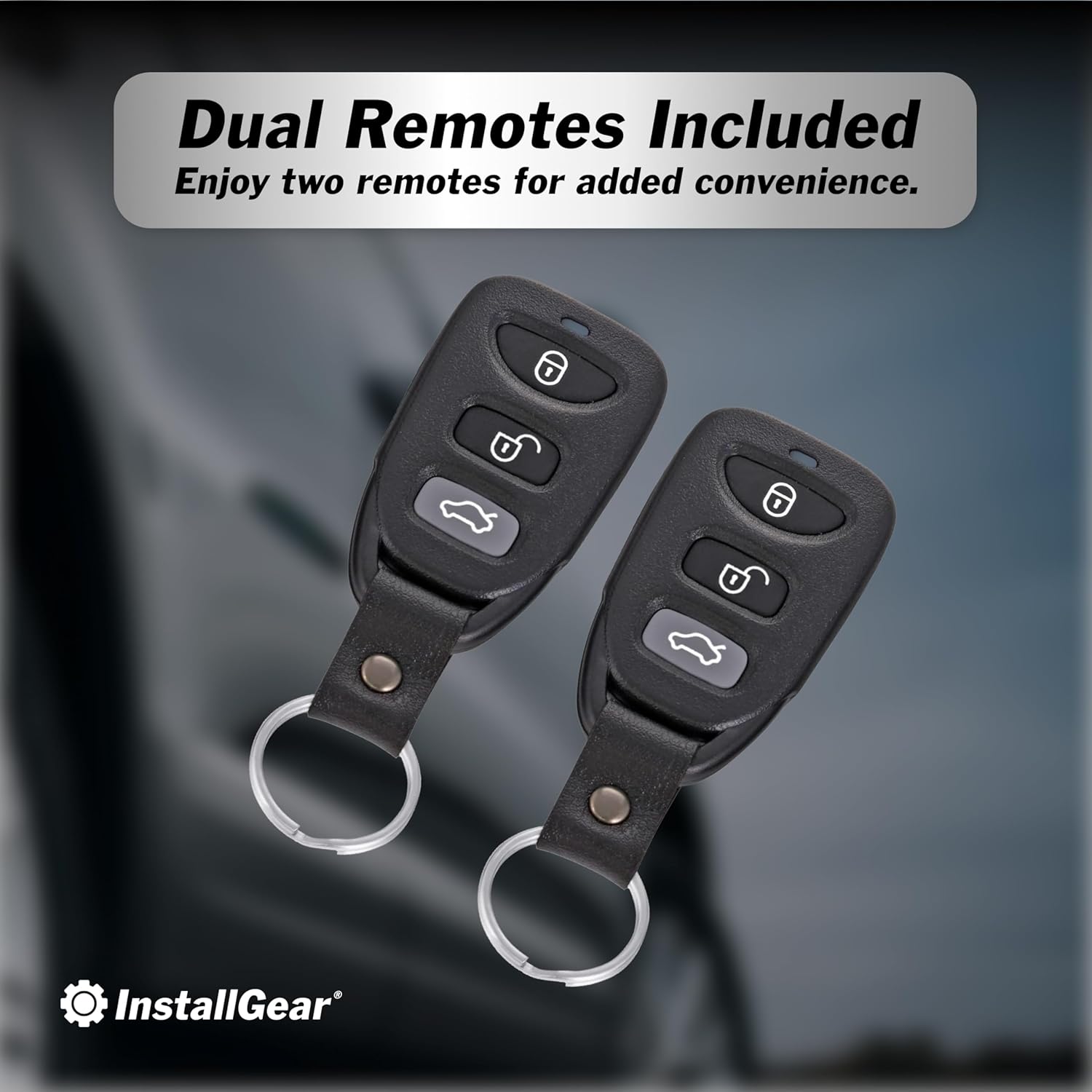

Figure 3: Remote Controls

• Zár gomb (🔒): Press once to lock all doors. The vehicle's lights will flash once to confirm. If the vehicle is already locked and you press the button again, the lights will flash five times.
• Feloldó gomb (🔓): Press once to unlock all doors. The vehicle's lights will flash twice to confirm.
• Trunk Release Button (🚗💨): Press and hold for approximately 2.5 seconds to activate the remote trunk release. This sends a brief pulse to the amber wire.

Figure 4: Keyless Convenience and Trunk Access

Karbantartás

The InstallGear Keyless Entry System is designed for long-lasting performance with minimal maintenance.

• Távoli akkumulátorok: If the remote's range decreases or it becomes unresponsive, replace the battery. Refer to the remote's casing for battery type (typically a coin cell battery).
• Bekötési ellenőrzés: Periodically inspect all wiring connections for signs of wear, corrosion, or loose connections. Ensure all wires are securely routed and protected.
• Működtető funkció: Listen for smooth operation of the actuators. If you notice any unusual noises or sluggish movement, inspect the mechanical linkage for obstructions or misalignment.

Hibaelhárítás

If you encounter issues with your keyless entry system, consider the following common troubleshooting steps:

If problems persist after attempting these solutions, it is recommended to consult a professional automotive electrician.

Műszaki adatok

• Gyártó: InstallGear
• Modellszám: IGCLS
• Tétel súlya: 2.07 font
• Csomag méretei: 11.02 x 7.44 x 2.68 hüvelyk
• Kompatibilis eszközök: Autók, teherautók
• Távirányító tartozék: Yes (Two 3-button remotes)
• ASIN: B01MDLUTPC
• Első elérhetőség dátuma: 13. október 2016

Garancia és támogatás

For warranty information or technical support, please contact InstallGear directly through their official weba weboldalon vagy a kereskedőnél, ahol a terméket vásárolta. Őrizze meg a vásárlást igazoló bizonylatot garanciális igények esetén.
