Futaba UBT3330 Rubber Grip Handle for 4PX / 7PX Transmitters Instruction Manual

Bevezetés

This manual provides detailed instructions for the installation, use, and maintenance of the Futaba UBT3330 Large Black Rubber Grip Handle, designed specifically for Futaba 4PX and 7PX series transmitters. Please read this manual thoroughly before installation to ensure proper fit and optimal performance.

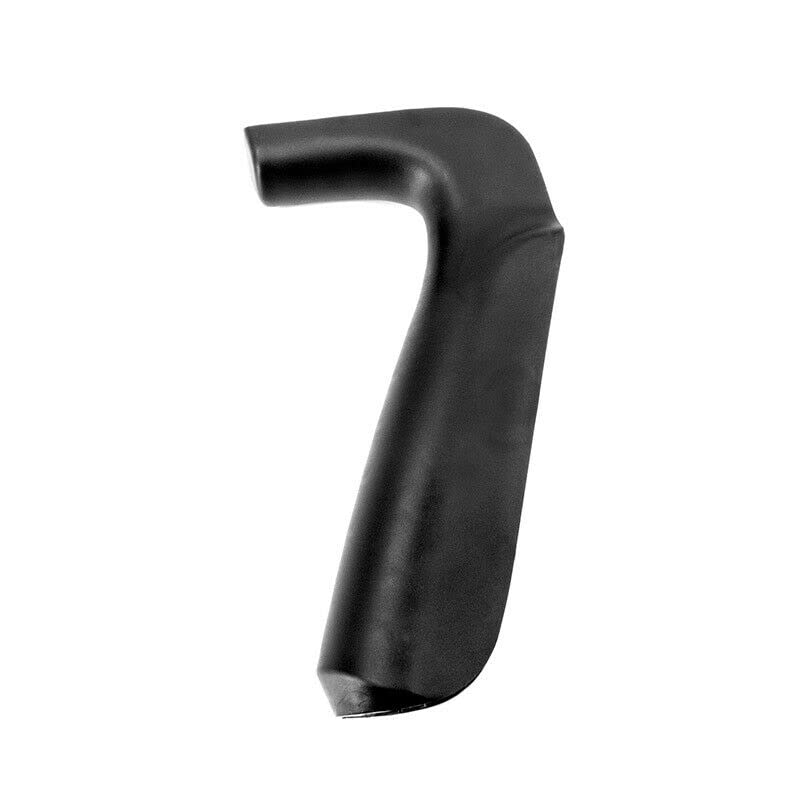

Image: The Futaba UBT3330 Large Black Rubber Grip Handle. This image shows the ergonomic design and textured surface of the grip, which is intended to enhance comfort and control during transmitter operation.

Beállítás és telepítés

The Futaba UBT3330 grip is designed for easy replacement on compatible Futaba transmitters. Follow these steps for proper installation:

1. Készítmény: Ensure your Futaba 4PX or 7PX transmitter is powered off. Gather any necessary small tools, such as a small Phillips head screwdriver, if required to access the existing grip area.
2. Remove Existing Grip (if applicable): Carefully inspect your transmitter for any screws or clips securing the current grip. Gently remove the old grip, taking care not to damage the transmitter casing vagy belső alkatrészek.
3. Position the New Grip: Align the Futaba UBT3330 Large Black Rubber Grip Handle with the designated grip area on your transmitter. Ensure that all edges and contours match the transmitter's body for a snug fit.
4. Secure the Grip: If your transmitter uses screws or other fasteners to secure the grip, re-insert and tighten them gently. Do not overtighten, as this can strip threads or damage the grip/transmitter. The grip should feel firm and not shift during use.
5. Végső ellenőrzés: Once installed, gently tug on the grip to confirm it is securely attached. Power on your transmitter to ensure no functionality has been affected during installation.

If you encounter any resistance or difficulty during installation, do not force the grip. Re-check the alignment and ensure no obstructions are present. Refer to your transmitter's original manual for specific grip removal/installation procedures if needed.

Operating and Ergonomics

The UBT3330 rubber grip is designed to enhance the comfort and control of your Futaba 4PX or 7PX transmitter. Its larger size and rubber material provide a more secure and comfortable hold, especially during extended use.

• Megnövelt kényelem: The ergonomic design and soft rubber material reduce hand fatigue.
• Továbbfejlesztett markolat: The textured surface provides a non-slip hold, improving precision and control.
• Optimális pozicionálás: Hold the transmitter naturally, allowing your fingers to comfortably reach all controls.

Adjust your hand position as needed to find the most comfortable and effective grip for your operating style.

Karbantartás és gondozás

Proper care will extend the life and maintain the feel of your rubber grip.

• Tisztítás: To clean the grip, use a soft, damp cloth with mild soap and water. Avoid harsh chemicals, solvents, or abrasive cleaners, as these can damage the rubber material.
• Szárítás: Ensure the grip is completely dry before using the transmitter again. Do not expose it to direct sunlight or excessive heat for drying.
• Tárolás: Store your transmitter in a clean, dry environment away from extreme temperatures and direct sunlight to prevent material degradation.

Hibaelhárítás

If you encounter issues with your Futaba UBT3330 grip, consider the following:

• Grip feels loose after installation:
  • Ensure all securing screws (if any) are properly tightened.
  • Verify the grip is correctly aligned and seated on the transmitter body.
• Grip feels uncomfortable:
  • Allow some time to adjust to the new grip, especially if it's a different size than your previous one.
  • Ensure your hand position is natural and relaxed.
• Rubber material appears sticky or degraded:
  • This can be caused by exposure to certain chemicals, oils, or prolonged direct sunlight. Review karbantartási utasításokat.
  • If the material is significantly degraded, replacement may be necessary.

Műszaki adatok

Garancia és támogatás

This product is manufactured to high-quality standards. For any questions regarding installation, use, or potential defects, please contact your retailer or the product manufacturer. Please retain your proof of purchase for any warranty claims.
