Bevezetés
Thank you for choosing the Outon LED Floor Lamp MF18806. This manual provides essential information for the safe and efficient use of your new lamp. Please read it thoroughly before assembly and operation, and retain it for future reference.
Image: The Outon LED Floor Lamp, bemutatóasing its sleek design, included remote control, and integrated touch control panel.
Biztonsági információk
- Győződjön meg arról, hogy a tápegység voltage egyezik az l-velampkövetelményeit a csatlakozás előtt.
- Ne szerelje szét és ne módosítsa a lampMinden szervizelési munkát bízzon szakképzett személyzetre.
- Tartsa meg az lamp víztől és magas páratartalmú környezettől távol.
- Kerülje a LED-fény hosszabb ideig tartó közvetlen szemnek való kitettségét.
- Ez az lamp kizárólag beltéri használatra készült.
- Mindig húzza ki az lamp tisztítás vagy bármilyen karbantartás elvégzése előtt húzza ki a hálózati csatlakozót.
A csomag tartalma
Kérjük, ellenőrizze, hogy minden alkatrész megvan-e és jó állapotban van-e:
- LED Lamp Head with Flexible Gooseneck
- Felső pólusszakasz
- Középpólus szakasz
- Lower Pole Section with Power Cord
- Súlyozott alap
- Távirányító (elemeket nem tartalmaz)
- Felhasználói kézikönyv
Beállítás és összeszerelés
Assembly of the Outon LED Floor Lamp is quick and requires no tools. Follow these steps:
- Óvatosan csomagolja ki az összes alkatrészt a csomagolásból.
- Screw the lower pole section into the weighted base by turning clockwise until secure. Ensure the power cord passes through the base without being pinched.
- Connect the middle pole section to the lower pole section by screwing them together clockwise.
- Connect the upper pole section (with the flexible gooseneck and lamp head) to the middle pole section by screwing them together clockwise.
- Győződjön meg arról, hogy minden csatlakozás szoros és stabil.
- Csatlakoztassa a hálózati adaptert egy megfelelő fali aljzatba.
Kép: Egy felrobbant view diagram illustrating the simple, tool-free assembly process of the lamp, highlighting the screw-together pole sections and stable metal base.
Kép: Egy részletes view az lamp's pole sections, demonstrating how they easily screw together for quick assembly.
Kezelési útmutató
Controls: Remote and Touch
A lamp can be controlled using either the integrated touch panel on the pole or the included remote control. The remote control has a range of up to 15 meters.
Image: A visual guide to the lamp's touch control panel and the remote control, detailing buttons for brightness, color temperature, power, and timer functions.
Image: A close-up of the lamp's touch control panel, showing the intuitive buttons for adjusting brightness, color temperature, and power.
Be-/Kikapcsolás
- Érintésvezérlés: Röviden nyomja meg a bekapcsoló gombot (U) on the lamp pólus.
- Távirányító: Nyomja meg a bekapcsológombot (U) a távirányítón.
Brightness Adjustment (Dimmable 10%-100%)
- Érintésvezérlés: Use the '+' and '-' buttons on the lamp pole to increase or decrease brightness.
- Távirányító: Use the brightness adjustment buttons on the remote.
Color Temperature Adjustment (4 Modes)
A lamp offers four color temperature modes: Warm (3000K), Warm White (4000K), Cool White (5000K), and Daylight (6000K).
- Érintésvezérlés: Nyomja meg az 'M' gombot az l-enamp pole to cycle through the color temperatures.
- Távirányító: Use the dedicated color temperature buttons on the remote.
Image: Visual representation of the four available color temperatures (3000K Warm, 4000K Warm White, 5000K Cool White, 6000K Daylight) and the stepless dimmable brightness from 10% to 100%.
1-Hour Sleep Timer
Activate the 1-hour timer to automatically turn off the lamp after one hour, ideal for bedtime.
- Érintésvezérlés: Nyomja meg hosszan a bekapcsoló gombot (U) on the lamp pólus.
- Távirányító: Press the timer button on the remote.
Image: A depiction of the lamp's 1-hour timer function, showing a sleeping child and an alarm clock, indicating its use for peaceful sleep.
Image: A graphic icon clearly indicating the 1-hour timer feature of the lamp.
Memória funkció
A lamp features a memory function that remembers your last brightness and color temperature settings when you turn it off and on again.
Image: A graphic icon symbolizing the lamp's memory function, indicating it retains previous settings.
Több világítási mód
The remote control allows quick selection of various preset lighting modes suitable for different activities.
Image: The remote control displaying buttons for various lighting modes such as Leisure, Reading, Office, Breastfeeding, and Night Light, allowing quick scene selection.
Jellemzők
- Rugalmas hattyúnyak: The 360-degree rotating gooseneck allows you to precisely direct the light to your desired area, making it versatile for various tasks.
- Stable and Safe Design: An extra-large, weighted metal base ensures the lamp remains stable and upright, preventing accidental tipping. The slim design allows it to fit into narrow spaces.
- Szemkímélő LED: The 12W LED light source provides 1200 lumens of soft, anti-glare, flicker-free illumination, reducing eye strain during prolonged use.
- Hosszú élettartam: The integrated LED has a lifespan of over 50,000 hours, providing long-lasting, energy-efficient lighting.

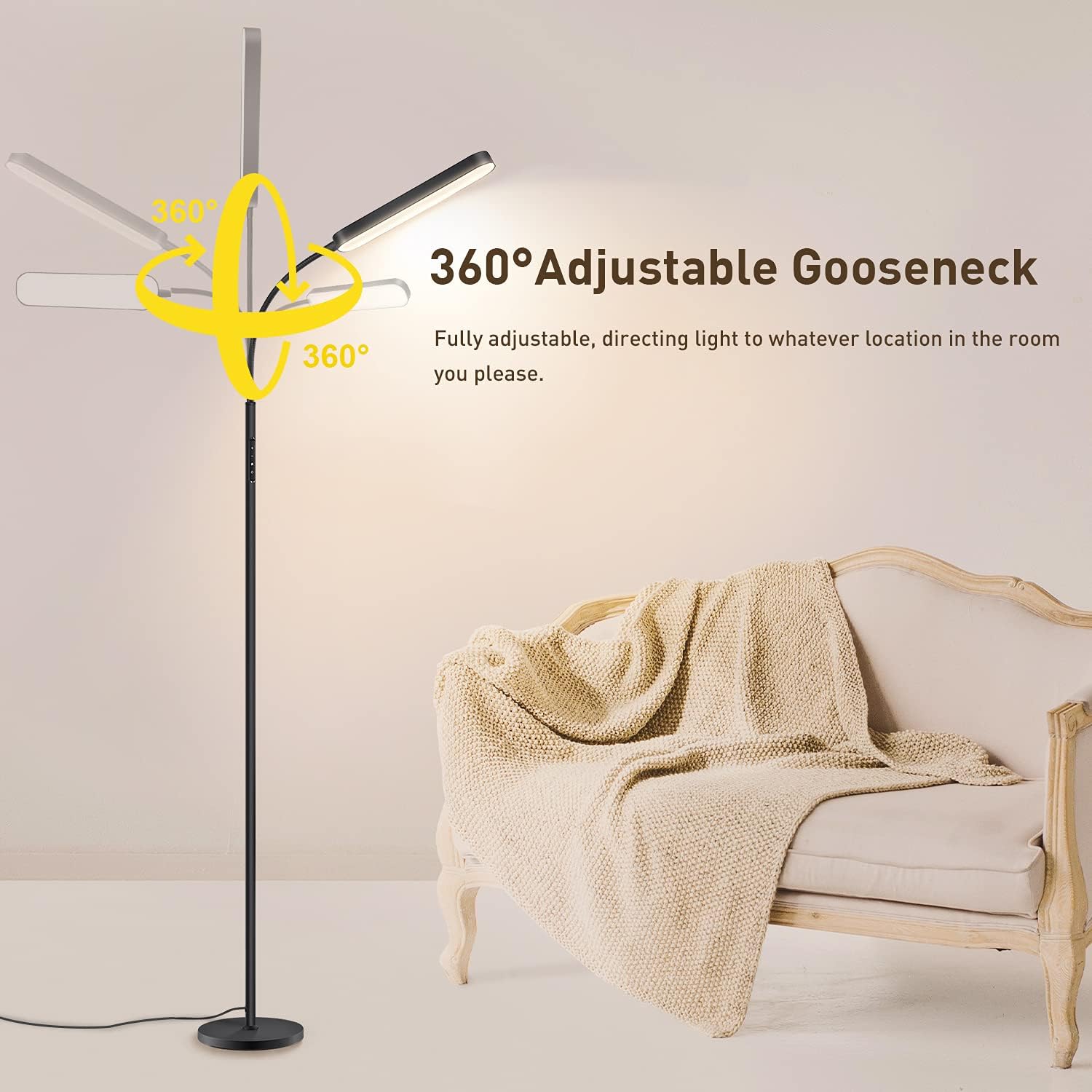

Kép: Az lamp demonstrating its 360-degree adjustable gooseneck, allowing the light to be directed to any desired location in the room.
Image: A graphic icon indicating the lamp's eye-caring properties, designed to reduce visual fatigue.
Karbantartás
- Tisztítás: Válassza le az lamp Tisztítás előtt húzza ki a konnektorból. Puha, száraz ruhával törölje át aampfelületét. Ne használjon súrolószereket vagy oldószereket.
- LED ápolás: A LED fényforrás integrált és hosszú távú használatra készült. Nem igényel cserét.
- Távirányító elemei: Replace the remote control batteries when its range or responsiveness decreases. Refer to the remote for battery type (typically AAA).
Hibaelhárítás
| Probléma | Lehetséges ok | Megoldás |
|---|---|---|
| Lamp nem kapcsol be. | Nincs tápellátás. Laza kapcsolat. |
Győződjön meg arról, hogy a tápkábel megfelelően csatlakozik egy működő konnektorhoz. Check all pole connections are tight. |
| A távirányító nem működik. | Az elemek lemerültek vagy rosszul vannak behelyezve. Remote is too far from the lamp. A távirányító és az l közötti akadályamp. |
Cserélje ki az elemeket újakra, ügyelve a helyes polaritásra. Menjen közelebb az l-hezamp (within 15m). Remove any objects blocking the signal. |
| A fény villog vagy instabil. | Instabil tápellátás. Loose internal wiring. |
Próbálja meg bedugni az l-tamp egy másik konnektorba. Ha a probléma továbbra is fennáll, forduljon az ügyfélszolgálathoz. |
Műszaki adatok
| Funkció | Részlet |
|---|---|
| Márka | OUTON |
| Modellszám | MF18806 |
| Termék méretei (H x Sz x Ma) | 20 x 20 x 174 cm |
| Tétel súlya | 2.4 kilogramm |
| Anyag | Fém |
| Szín | Fekete |
| Stílus | Modern |
| Fényforrás típusa | LED |
| Wattage | 12 watt |
| Fényáram | 1200 lm |
| Különleges jellemzők | Flexible, Dimmable, Remote or Touch Control, 1-Hour Timer, Memory Function |
| Színhőmérsékletek | 4 (Warm, Warm White, Cool White, Daylight) |
| Áramforrás | Vezetékes elektromos |
| Használat | Csak beltéri használatra |
Image: The energy efficiency label for the Outon LED Floor Lamp MF18806, indicating its energy class.
Image: A visual representation of Color Rendering Index (CRI) values (65Ra, 75Ra, 85Ra), demonstrating the lamp's ability to accurately render colors.
Garancia és támogatás
Outon is committed to providing high-quality products. For any questions, concerns, or technical support regarding your LED Floor Lamp MF18806, please contact Outon customer service. Please refer to your purchase documentation or the official Outon webweboldalán talál részletes garanciális információkat és elérhetőségeket.
Information regarding spare parts availability and software updates is not explicitly provided in the product specifications.
